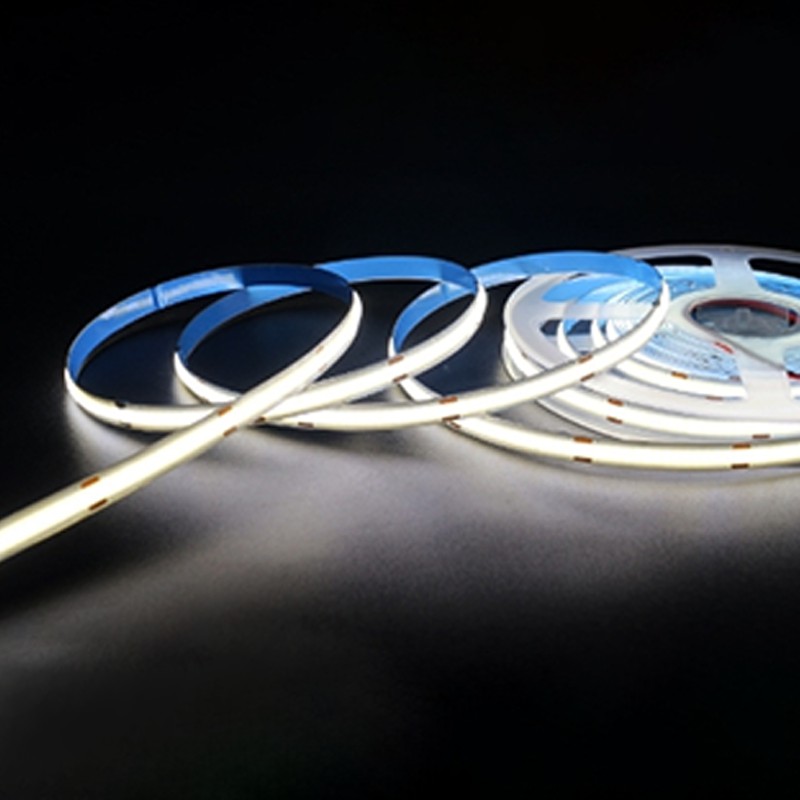

Constant Current 324D IC
> Low brightness drop in 10m, suitable for project usage
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
- Parameters
> Low brightness drop in 10m, suitable for project usage
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
Wattage (max) 10W
Lumens 800lm @4000K
Efficacy (Lm/W) /m 80lm/W @4000K
CRI 90
Colour temp 2700/3000/4000K
Input DC24V

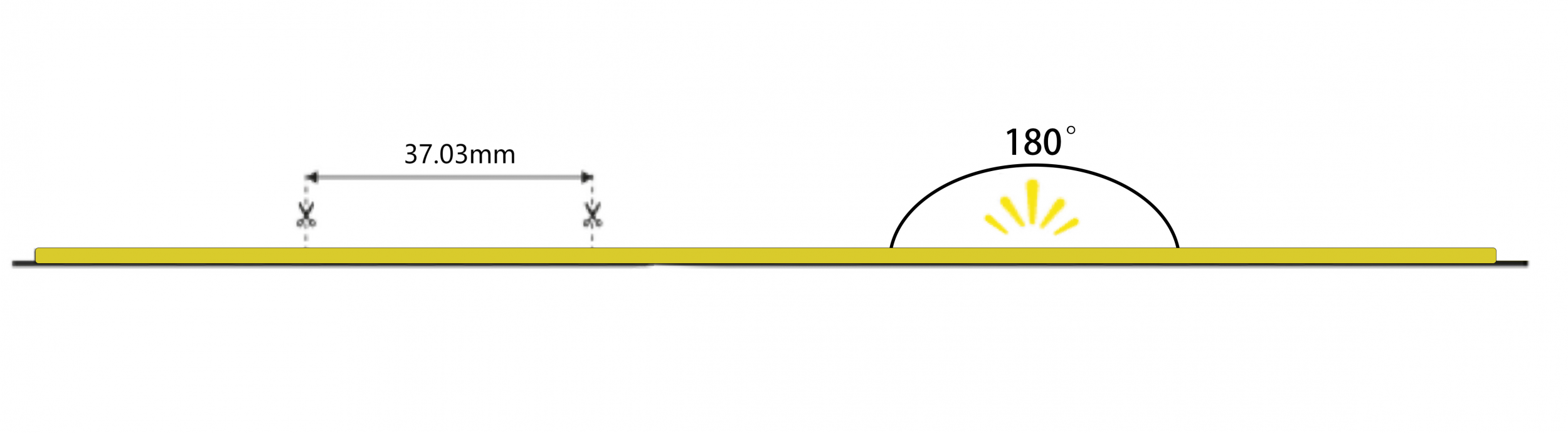

Beam angle(°) 180°
LED Chips/m 324pcs
Width of PCB 8mm
Min Cutting Length 37.03mm
Warranty 5 years
Packing 10m/reel
Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-032402408D27G10-S3 324pcs 10W 2700K 90 65-75lm/W 8mm 37.03mm
PUCS-032402408D27G10-S3 324pcs 10W 3000K 90 65-75lm/W 8mm 37.03mm
PUCS-032402408D27G10-S3 324pcs 10W 4000K 90 70-80lm/W 8mm 37.03mm
