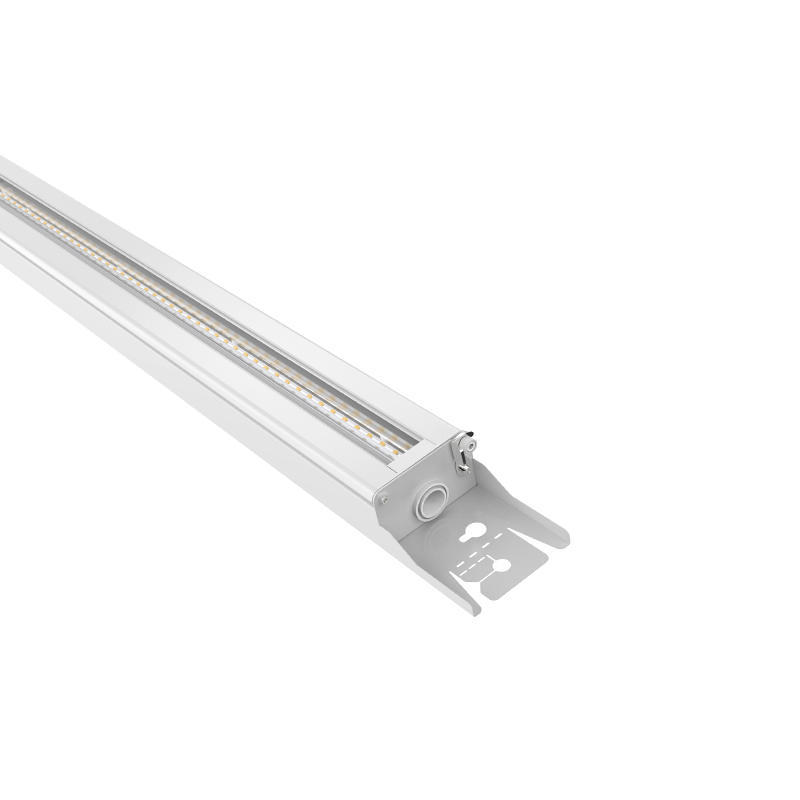

Pro Batten Single PCB

> Locking and fixing cover by rotating buckle to make it quick and flexible installation.

> Single LED board, simpler appearance and costs saving.

> Using screws to fix cover, no need tools to replace the lens and led part.

> Adopting 3-pole/5 pole connector for easy wiring connection.

> Wattage changeable by DIP switch

> All the function of on-off, DALI module are optional for flexible assembly.

Parameters

> Locking and fixing cover by rotating buckle to make it quick and flexible installation.

> Single LED board, simpler appearance and costs saving.

> Using screws to fix cover, no need tools to replace the lens and led part.

> Adopting 3-pole/5 pole connector for easy wiring connection.

> Wattage changeable by DIP switch

> All the function of on-off, DALI module are optional for flexible assembly.

Wattage (max) 34-60W/45-80W switchable

Lumens 12000lm max @80W

Luminaire Efficacy (Lm/W) 150lm/W

CRI 80

Colour temp 3000/4000K

Input AC220-240V

Beam angle(°) 60°/90°

Length 1350/1650mm

Width 75mm

Height 47mm

Installation Surface mounted/Horizontal suspension

IP IP23

Lifespan 100000H@L80B10

Warranty 5 years

Colors White

Power supply ON-OFF/DALI

Article No. Wattage LM/W CCT Dimension IP IK

PUBT135-060T300VN-03 34/42/52/60W 150lm/W 3000/4000K 1350*75*47mm 23 07

PUBT165-080T400VN-03 45/56/70/80W 150lm/W 3000/4000K 1650*75*47mm 23 07
