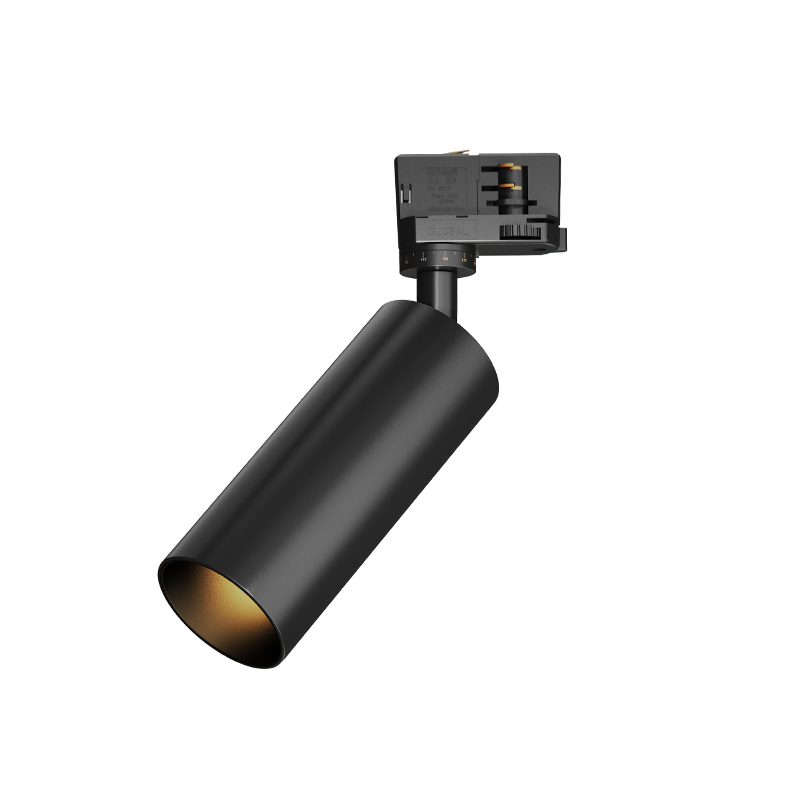

Fixed Pro
> CRI>90, single color or 2700-3000-4000K could be adjusted freely by CCT Switch
> Full beam angle options 12°/ 24°/ 36°/ 50°, meet different request
> High quality 60 series aluminium for better heat dissipation
> Reflector and lens both available
> Flexible unique design, lamp body could be rotated by 355° leftand right, 90° up and down
> Match standard 2-wires, 3-wires, 4-wires track rails
- Parameters
> CRI>90, single color or 2700-3000-4000K could be adjusted freely by CCT Switch
> Full beam angle options 12°/ 24°/ 36°/ 50°, meet different request
> High quality 60 series aluminium for better heat dissipation
> Reflector and lens both available
> Flexible unique design, lamp body could be rotated by 355° leftand right, 90° up and down
> Match standard 2-wires, 3-wires, 4-wires track rails
Wattage (max) 9/20/30W
Lumens 3750lm max
Luminaire Efficacy (Lm/W) 125lm/W
CRI 90
Colour temp 2700-3000-4000K Switchable
Input AC220-240V
Beam angle(°) 12°/ 24°/ 36°/50°
Fixation Track
IP IP44
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply ON-OFF/Triac-dim/DALI
Article No. Wattage Lumen(max) CCT CRI Beam Angle Dimension
PUTL46-009-02 9W 900lm 2700K/3000K/4000K 90 8°/ 12°/ 24°/36°/50° D46*148mm
PUTL62-020-02 20W 2400lm 2700-3000-4000K 90 12°/ 24°/ 36°/50° D62*155mm
PUTL80-030-02 30W 3750lm 2700-3000-4000K 90 12°/ 24°/ 36°/50° D80*182mm
