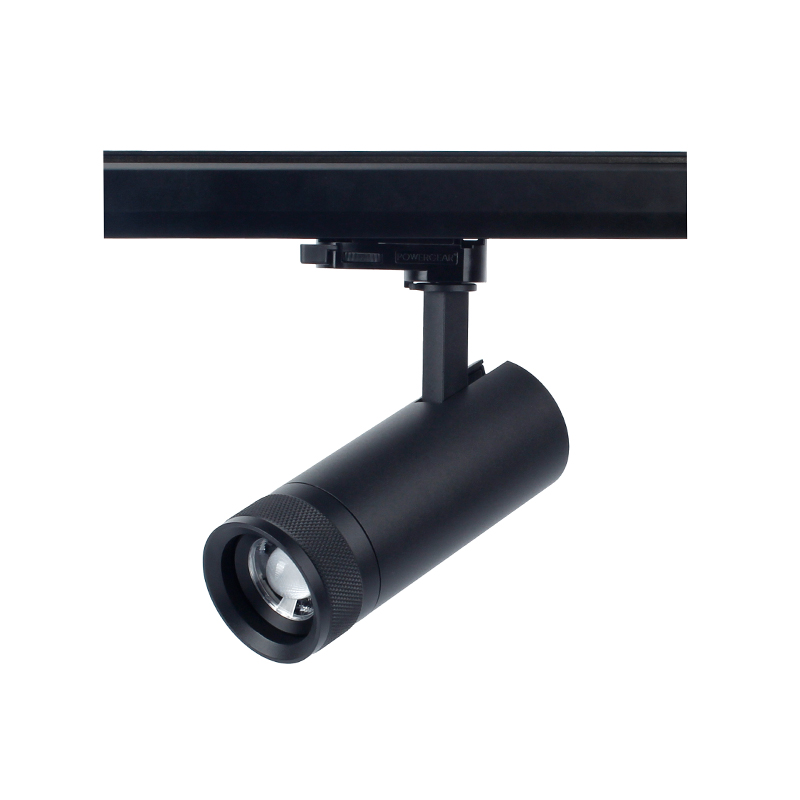

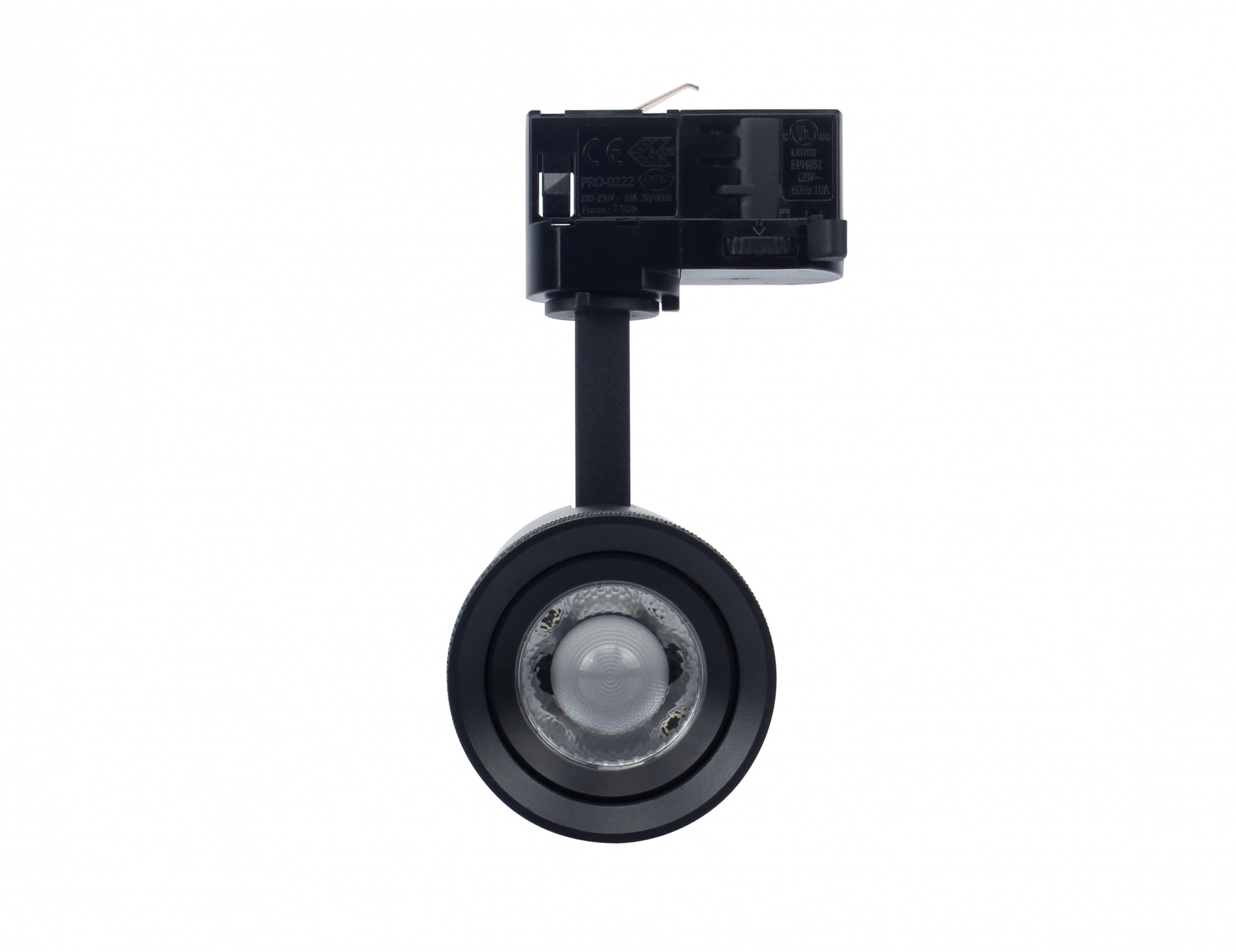

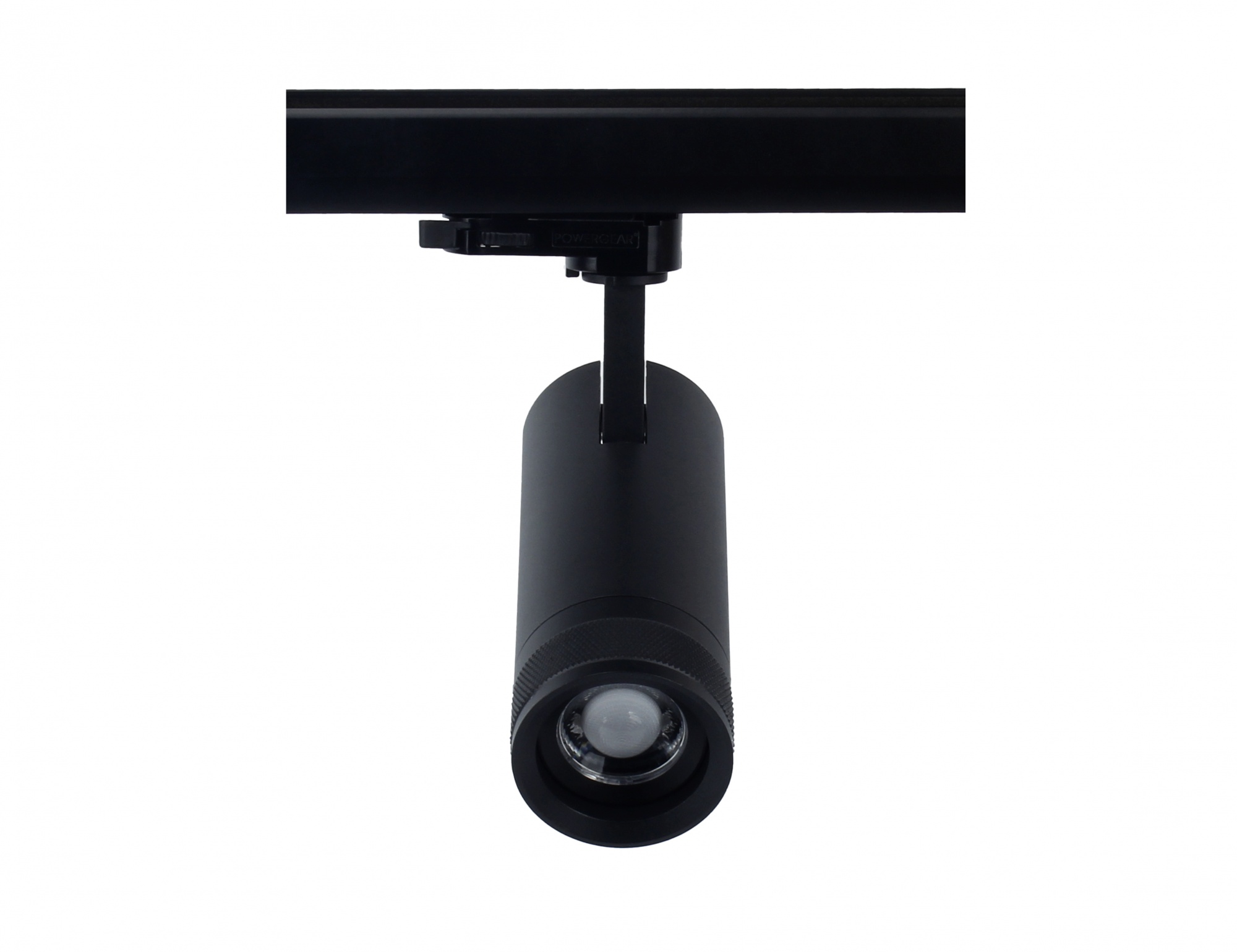

Zoom Standard
> Beam angle can be changed freely from 20°-50°
> CRI>90, 2700K/3000K/4000K could be adjusted freely by CCT Switch
> Flexible unique design, lamp body could be rotated by 350°left and right, 90° up and down
> Unique cold forging process, high quality 60 seriesaluminium for better heat dissipation
> Match standard 2-wires, 3-wires, 4-wires track rails
- Parameters
> Beam angle can be changed freely from 20°-50°
> CRI>90, 2700K/3000K/4000K could be adjusted freely by CCT Switch
> Flexible unique design, lamp body could be rotated by 350°left and right, 90° up and down
> Unique cold forging process, high quality 60 seriesaluminium for better heat dissipation
> Match standard 2-wires, 3-wires, 4-wires track rails
Wattage (max) 15/25/30/40W
Lumens 3200lm max
Luminaire Efficacy (Lm/W) 80lm/W
CRI 90
Colour temp 2700-3000-4000K Switchable
Input AC220-240V
Beam angle(°) 15°/ 24°/ 38°/45°/60°
Fixation Track
IP IP20
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply ON-OFF/Triac-dim/DALI
Article No. Wattage Lumen(max) CCT CRI Beam Angle Dimension
PUTL62-010-03 10W 750lm 2700-3000-4000K 90 20-50° D62*160mm
PUTL72-020-03 20W 1500lm 2700-3000-4000K 90 20-50° D72*171mm
PUTL94-030-03 30W 2250lm 2700-3000-4000K 90 20-50° D94*180mm
PUTL110-045-03 45W 3375lm 2700-3000-4000K 90 20-50° D110*194mm
