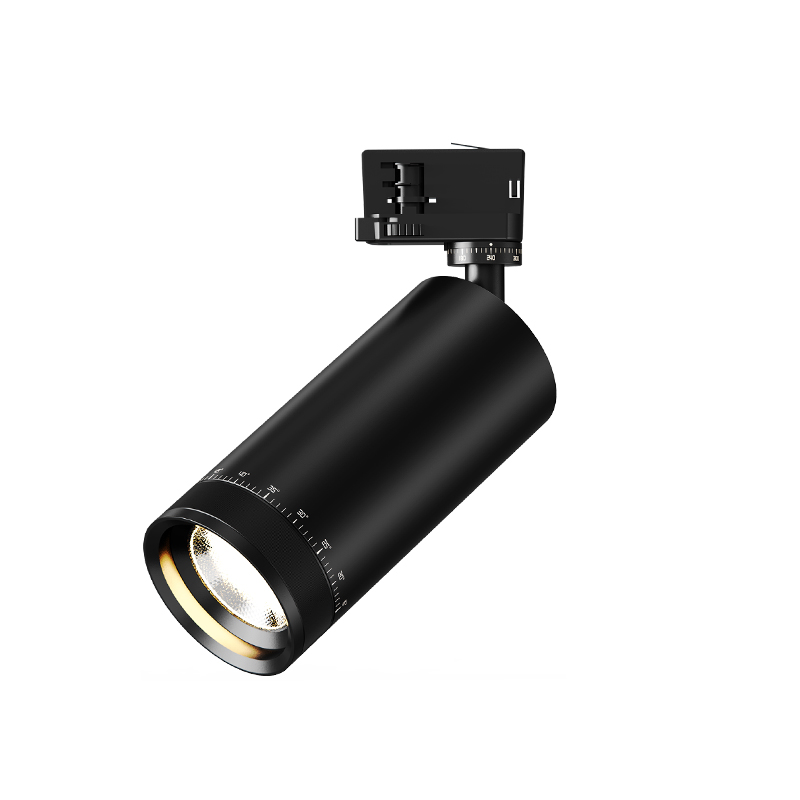

Zoom Pro
> Beam angle can be changed freely from 15°-60°, top-endzoom lens with >90% lights in the main angle
> CRI>90, 2700K/3000K/4000K could be adjusted freely by CCT Switch
> High efficiency, much saving energy
> Unique rocker design, lamp body could be rotated by 355°left and right, 90° up and down
> Excellent 60 series aluminum material, unique heat sinkingstructure
> Match standard 2-wires, 3-wires, 4-wires track rails
- Parameters
> Beam angle can be changed freely from 15°-60°, top-endzoom lens with >90% lights in the main angle
> CRI>90, 2700K/3000K/4000K could be adjusted freely by CCT Switch
> High efficiency, much saving energy
> Unique rocker design, lamp body could be rotated by 355°left and right, 90° up and down
> Excellent 60 series aluminum material, unique heat sinkingstructure
> Match standard 2-wires, 3-wires, 4-wires track rails
Wattage (max) 25/30W
Lumens 3750lm max
Luminaire Efficacy (Lm/W) 125lm/W
CRI 90
Colour temp 2700-3000-4000K Switchable
Input AC220-240V
Beam angle(°) 15°-60°
Fixation Track
IP IP20
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply ON-OFF/Triac-dim/DALI
Article No. Wattage Lumen(max) CCT CRI Beam Angle Dimension
PUTL80-025-04 25W 3125lm 2700-3000-4000K 90 15-60° D80*175mm
PUTL80-030-04 30W 3750lm 2700-3000-4000K 90 15-60° D80*175mm
