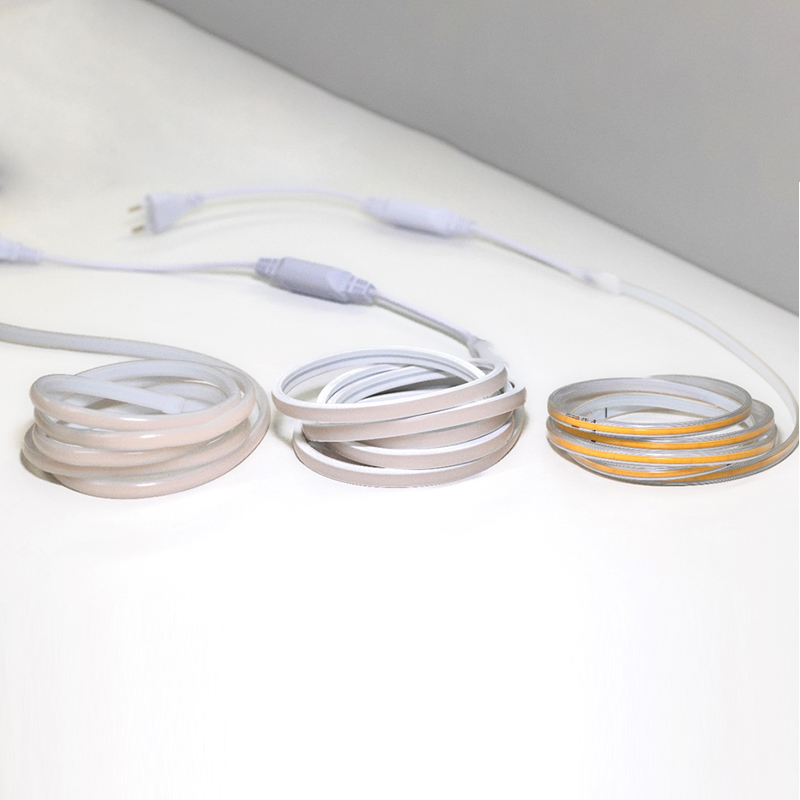

High-voltage 288D
> High voltage, efficient and stable, easy installation without wiring
> Waterproof PVC insulation colloid, high light transmittance, soft and non-glaring light
> 100 meters low brightness difference suitable for engineering lighting strips
> Insulation and dustproof, more durable, IP65 dustproof and waterproof grade
> Suitable for a variety of scenarios, such as commercial, hotel, home, stage and other indoor lighting scene needs
- Parameters
> High voltage, efficient and stable, easy installation without wiring
> Waterproof PVC insulation colloid, high light transmittance, soft and non-glaring light
> 100 meters low brightness difference suitable for engineering lighting strips
> Insulation and dustproof, more durable, IP65 dustproof and waterproof grade
> Suitable for a variety of scenarios, such as commercial, hotel, home, stage and other indoor lighting scene needs
Wattage (max) 10W
Lumens 700lm @4000K
Efficacy (Lm/W) /m 70lm/W @4000K
CRI 80
Colour temp 3000/4000/6500K
Input DC230V

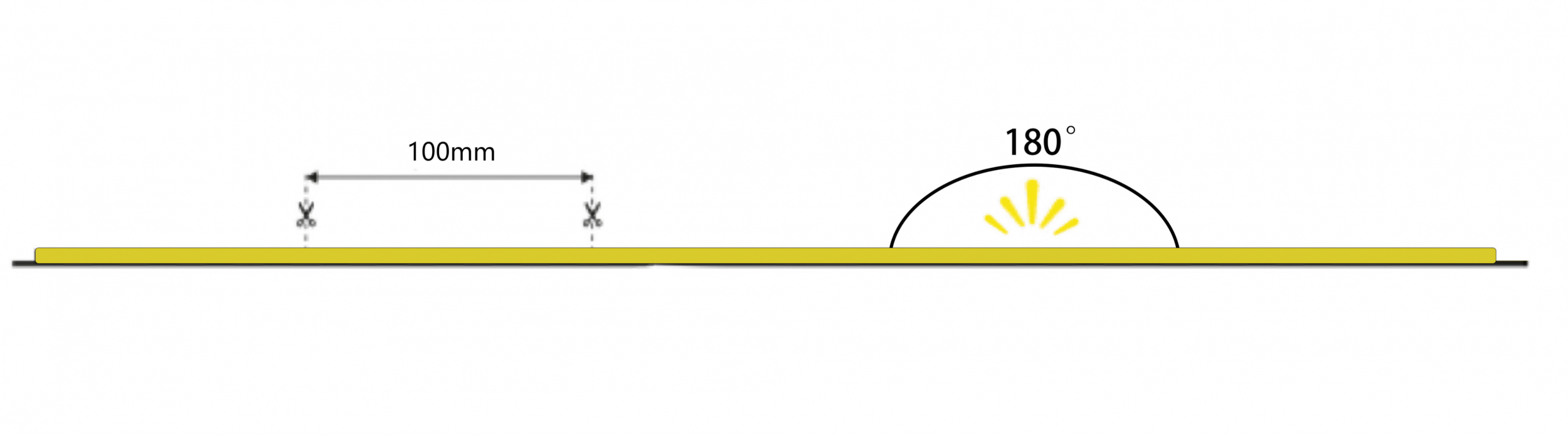

Beam angle(°) 180°
LED Chips/m 288pcs
Width of PCB 8mm
Min Cutting Length 100mm
Warranty 3/5 years
Packing 100m/reel
Article No. Version Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-028822008D30F10-S1 Transparent 288pcs 10W 3000K 80 60-70lm/W 8mm 100mm
PUCS-028822008D40F10-S1 Transparent 288pcs 10W 4000K 80 65-75lm/W 8mm 100mm
PUCS-028822008D65F10-S1 Transparent 288pcs 10W 6500K 80 65-75lm/W 8mm 100mm
PUCS-028822008D30F10-S1 Opal 288pcs 10W 3000K 80 55-65lm/W 8mm 100mm
PUCS-028822008D40F10-S1 Opal 288pcs 10W 4000K 80 60-70lm/W 8mm 100mm
PUCS-028822008D65F10-S1 Opal 288pcs 10W 6500K 80 60-70lm/W 8mm 100mm
PUCS-028822008D30F10-S1 Opal+White side 288pcs 10W 3000K 80 45-55lm/W 8mm 100mm
PUCS-028822008D40F10-S1 Opal+White side 288pcs 10W 4000K 80 50-60lm/W 8mm 100mm
PUCS-028822008D65F10-S1 Opal+White side 288pcs 10W 6500K 80 50-60lm/W 8mm 100mm
