Lighting-Spot Strip 24V 182D
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> 5m/10m a reel, 150mm welding wire in one or two ends.
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
- Parameters
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> 5m/10m a reel, 150mm welding wire in one or two ends.
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
Wattage (max) 11W
Lumens 1000lm @4000K
Efficacy (Lm/W) /m 90lm/W @4000K
CRI 80/90
Colour temp 3000/4000/6500K
Input DC24V
Beam angle(°) 180°
LED Chips/m 182pcs
Width of PCB 8mm

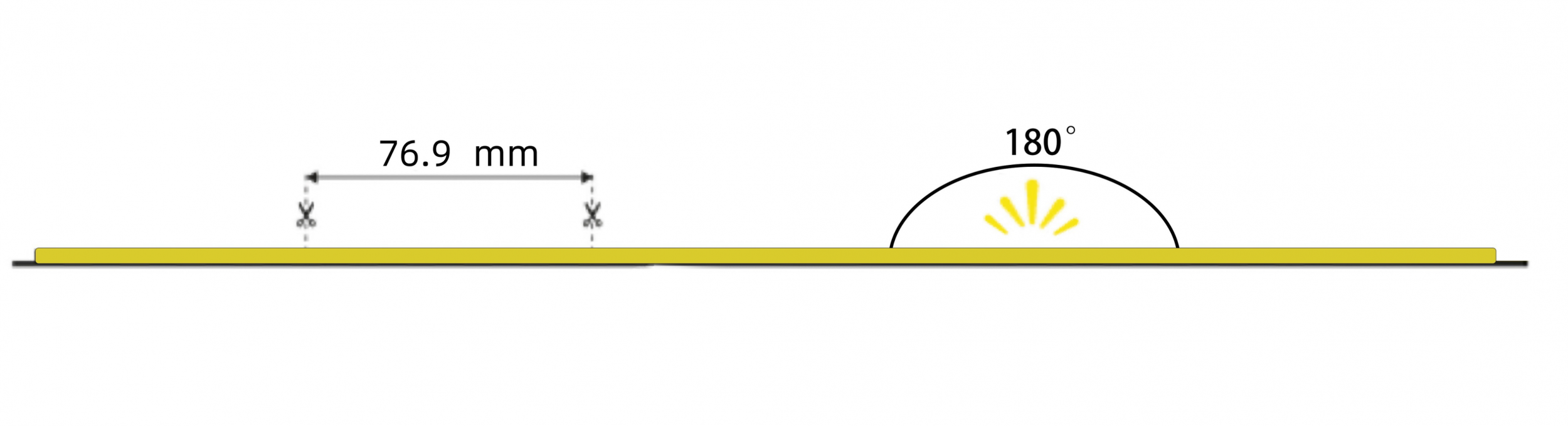

Min Cutting Length 76.9mm
Warranty 3 years
Packing 10m/reel
Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-018202408D30F11-S 182pcs 11W 3000K 80 75-85lm/W 8mm 76.9mm
PUCS-018202408D40F11-S 182pcs 11W 4000K 80 80-90lm/W 8mm 76.9mm
PUCS-018202408D65F11-S 182pcs 11W 6500K 80 80-90lm/W 8mm 76.9mm
PUCS-018202408D30G11-S 182pcs 11W 3000K 90 65-75lm/W 8mm 76.9mm
PUCS-018202408D30G11-S 182pcs 11W 4000K 90 75-85lm/W 8mm 76.9mm
PUCS-018202408D30G11-S 182pcs 11W 6500K 90 75-85lm/W 8mm 76.9mm
