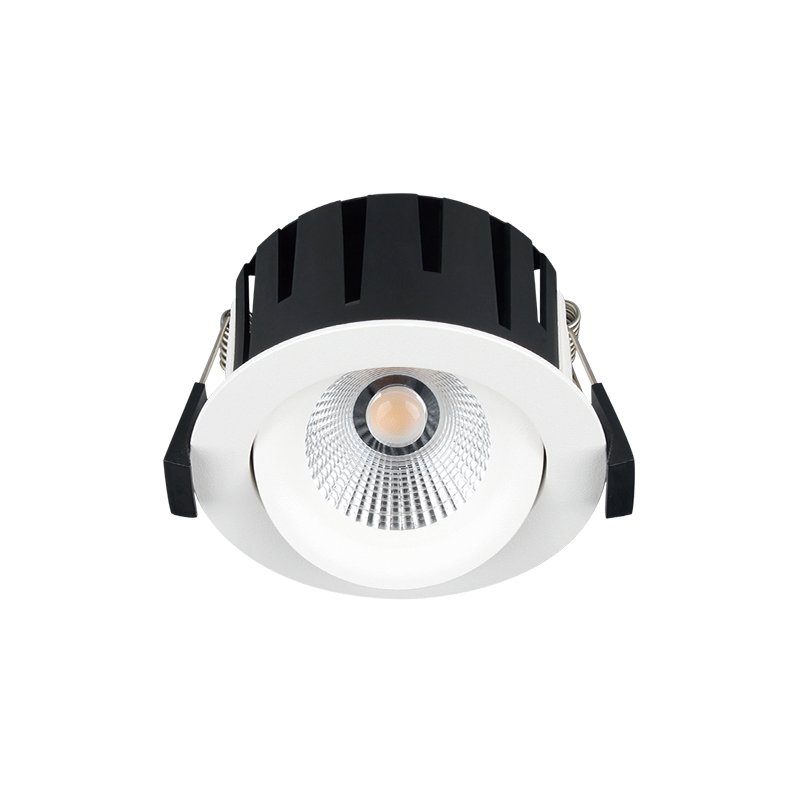

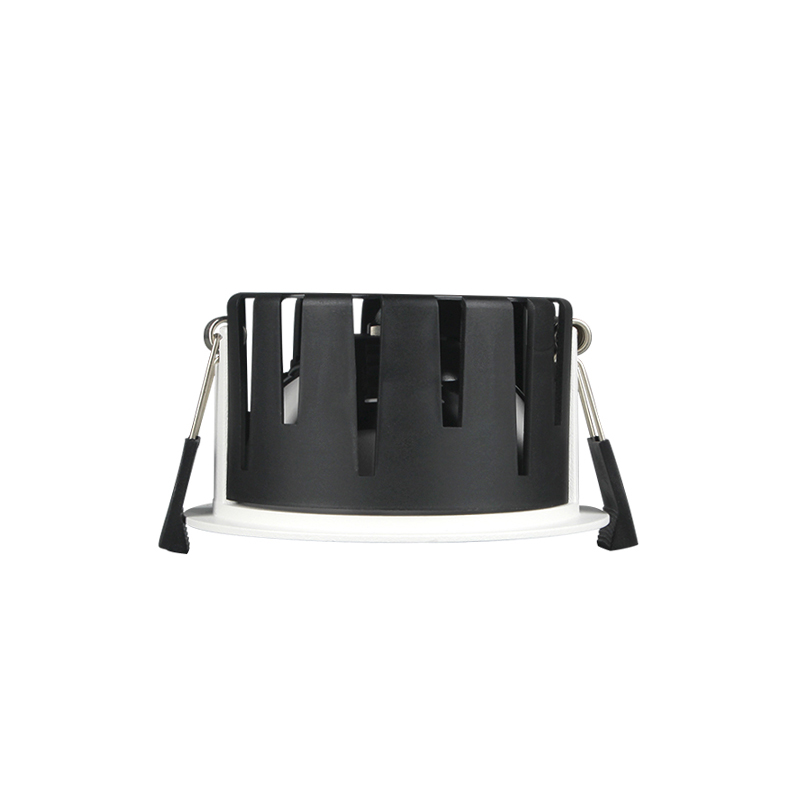

360° Rotary - Reflector

    360° lighting directions, 25° tilt.

    With back lid for isolation installation, can be covered directly under insulation cotton.

    Fast connection with junction box, fired-rated V0 level.

    IP54 protection, pass 360hrs Salt spray testing.

    Full options: reflector/lens, 38°/60°.

    Dimmable, Tri-color, D2W, RGBCW available.




Download Annex

  • Parameters

    360° lighting directions, 25° tilt.

    With back lid for isolation installation, can be covered directly under insulation cotton.

    Fast connection with junction box, fired-rated V0 level.

    IP54 protection, pass 360hrs Salt spray testing.

    Full options: reflector/lens, 38°/60°.

    Dimmable, Tri-color, D2W, RGBCW available.




Wattage (max)                                      8W

Lumens                                                  600lm max @2700K

Luminaire Efficacy (Lm/W)                 75lm/W @2700K

CRI                                                          90

Colour temp                                         2700/3000/4000/1800-3000K

Input                                                      AC220-240V

Beam angle(°)                                      38°/60°

Cutout                                                   83mm

Recessed depth                                   48mm

Fixation                                                 Recessed

IP                                                            IP54

Lifespan                                                 50000H@L80B10

Warranty                                               5 years

Colors                                                    White/Black/Silver/Chrome

Power supply                                       ON-OFF/Triac-dim



       Article No.                                Description                      Wattage                        CCT                                CRI                IP

    PUDL03-008-09                                     Single CCT                               8W                         2700/3000/4000K                     90                   54

PUDL03-008-09-DCM                             Multiple CCT                            8W                             3000-5700K                            90                   54

PUDL03-008-09-D2W                              Dim2Warm                              8W                             1800-3000K                            90                   54
