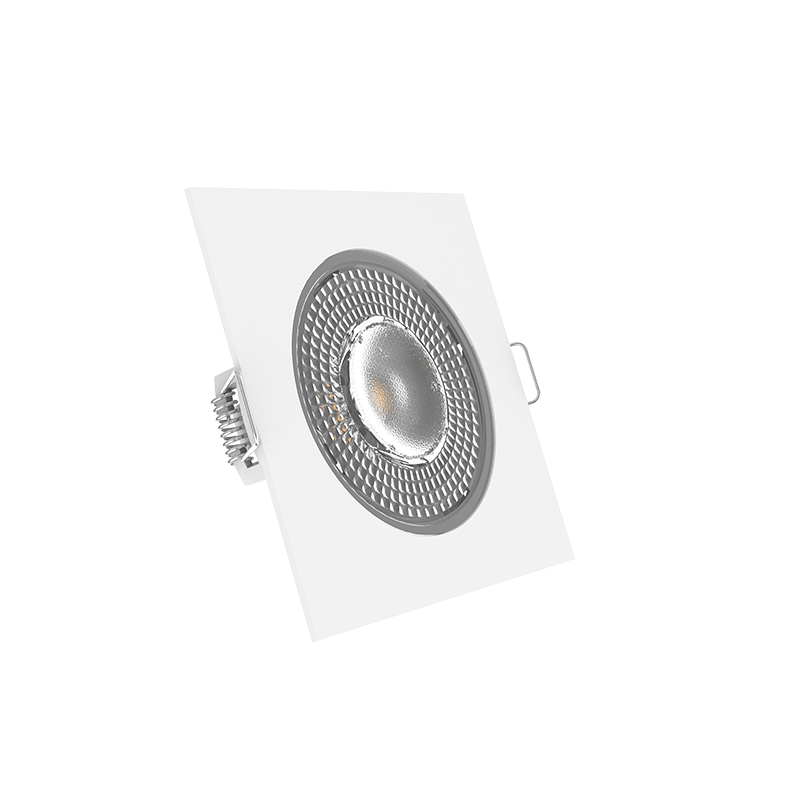

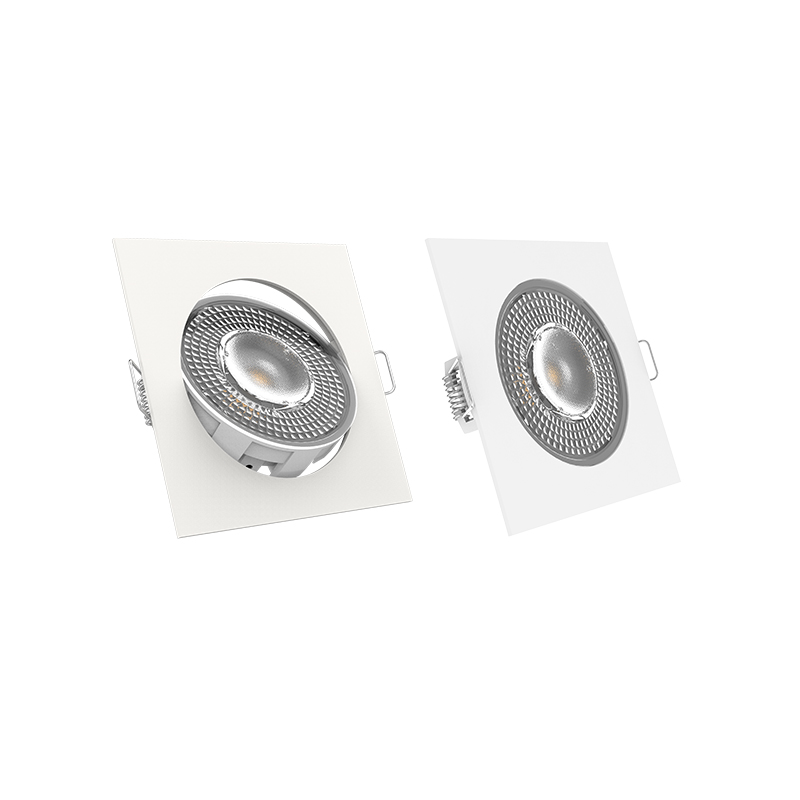

Frameless-80mm Square Fixed

    Angle changeable 38-60°, superior in stock management.

    Super Thinnest: 24mm height, wide application.

    Frameless design, unique in the market.

    Die-cast aluminium construction, good heat dissipation

    IP54 protection, passed 360hrs Salt spray test, suitable for bathrooms, outdoor under the roof, moist places with shelters...

    Dimmable, D2W, RGBW options


Download Annex

  • Parameters

    Angle changeable 38-60°, superior in stock management.

    Super Thinnest: 24mm height, wide application.

    Frameless design, unique in the market.

    Die-cast aluminium construction, good heat dissipation

    IP54 protection, passed 360hrs Salt spray test, suitable for bathrooms, outdoor under the roof, moist places with shelters...

    Dimmable, D2W, RGBW options


Wattage (max)                                      10W

Lumens                                                  880lm (4000K)

Efficacy (Lm/W)                                    88lm/W (4000K)

CRI                                                          90

Colour temp                                         3000/4000/5000K

Input                                                     100-240V

Beam angle(°)                                      38°/ 60°

Shape                                                    Round fixed

Cutout                                                   68mm

Recessed depth                                   24mm

Fixation                                                 Recessed

IP                                                            IP54

Lifespan                                                 50000H

Warranty                                               5 years

Colors                                                    White/Black/Silver/Brushed

Power supply                                       ON-OFF/Triac-dim/0-10V/DALI

Article No.                                                                Description                                        Wattage                       CCT                                   CRI                IP

PUCA3SF-010-01-S                                       Single CCT Downlight Triac Dimming                               10W                       3000/4000/5000K                        80/90              54

PUCA3SF-010-01-DCM                                Multiple CCT Downlight by switch                                   10W                       3000-5700K                                    90                    54

PUCA3SF-010-01-D2W                                Dim2Warm Downlight Triac Dimming                             10W                       1800-3000K                                    90                    54

PUCA3SF-010-01-SC                                    Smart Control Downlight by Tuya APP                             10W                       3000-5700K                                    90                    54
