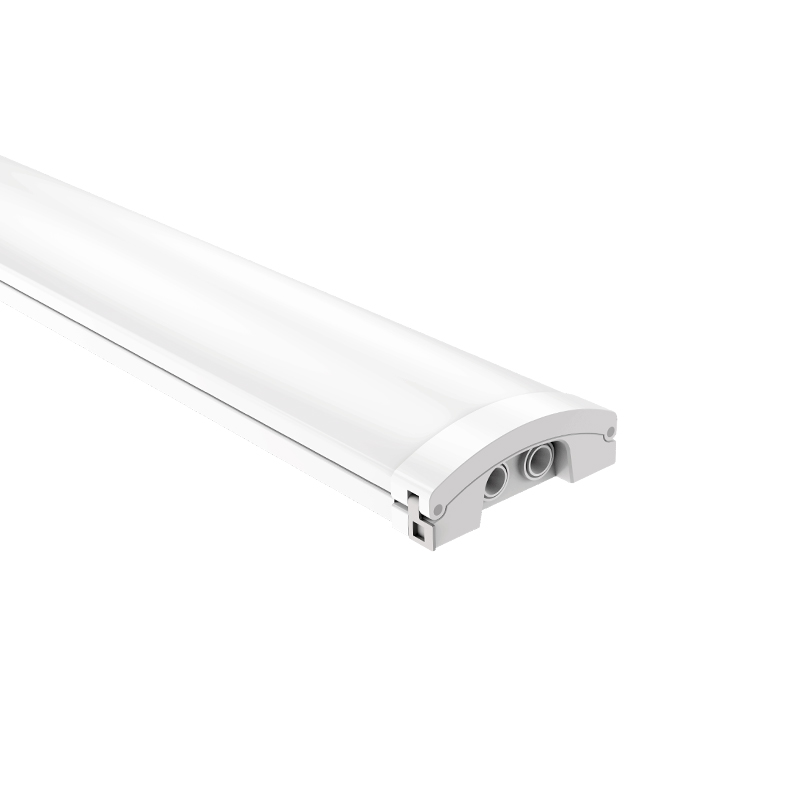

Mega Batten
> Quick installation by using smart locker structure to fix end cap, very easy to open or close.
> AC cable can be input from middle part or end caps, meet with different wiring requests.
> LED board is fixed by plastic snaps that can help to replace the led board flexibly.
> Various sizes and patterns of installation will fulfil different applications.
> Wattage and CCT are changeable by DIP switches.
> IP44 design is suitable for more applications.
> All the function of on-off, DALI, sensor, emergency battery module are optional for flexible assembly.
- Parameters
> Quick installation by using smart locker structure to fix end cap, very easy to open or close.
> AC cable can be input from middle part or end caps, meet with different wiring requests.
> LED board is fixed by plastic snaps that can help to replace the led board flexibly.
> Various sizes and patterns of installation will fulfil different applications.
> Wattage and CCT are changeable by DIP switches.
> IP44 design is suitable for more applications.
> All the function of on-off, DALI, sensor, emergency battery module are optional for flexible assembly.
Wattage (max) 12-20W/22-40W/27-47W switchable
Lumens 6580lm max @47W
Module Efficacy (Lm/W) 140lm/W
CRI 80
Colour temp 3000-4000K
Input AC220-240V
Beam angle(°) 110°
Length 620/1220/1510mm
Width 155mm
Height 55mm

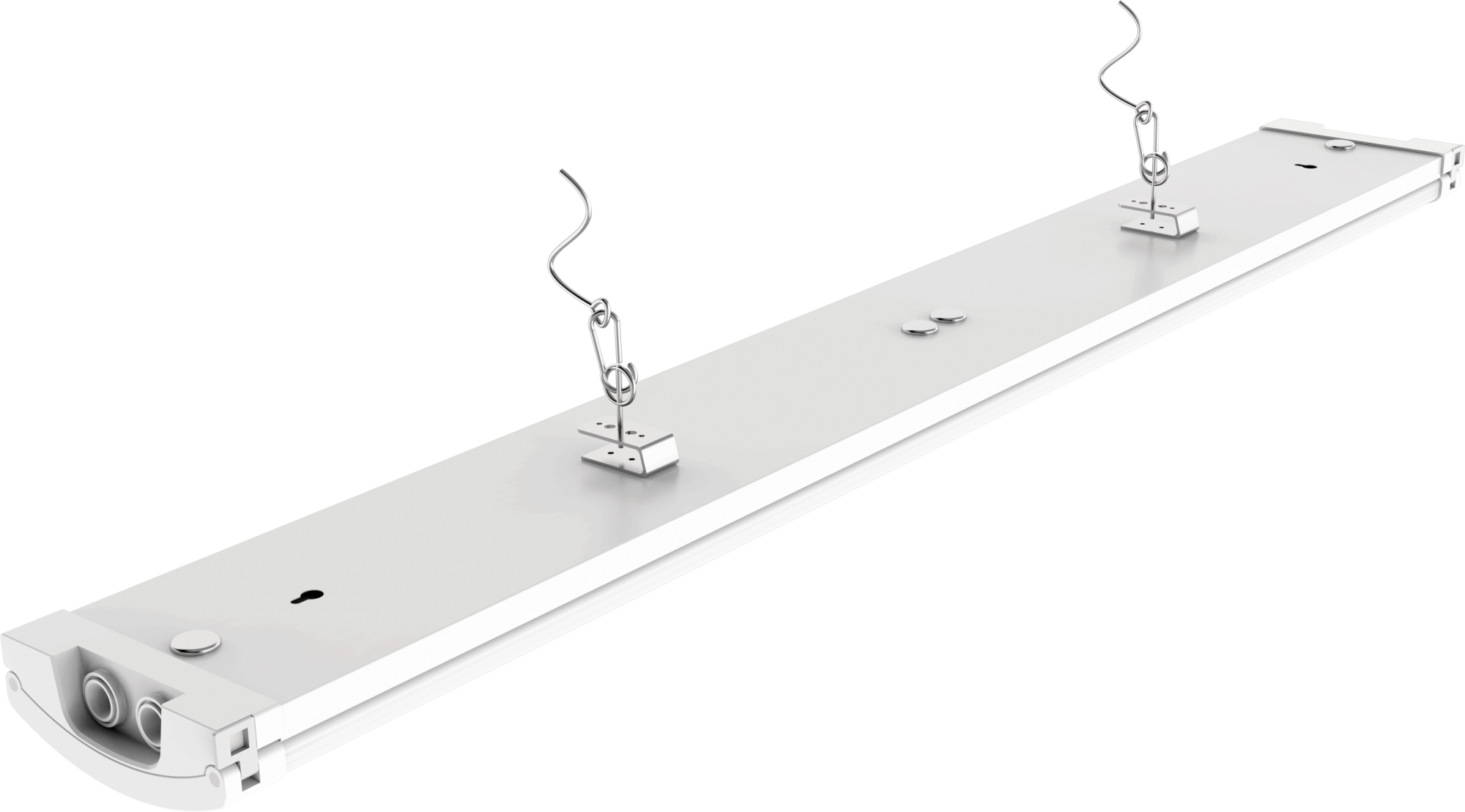

Installation Surface mounted/Suspension/Horizontal suspension/Wall mounted
IP IP44
Lifespan 100000H@L80B10
Warranty 5 years
Colors White
Power supply ON-OFF/0-10V/DALI
Article No. Wattage Module LM/W CCT Dimension IP IK
PUBT06-020T216VMC-01 12/15/18/20W 140lm/W 3000-4000K 620*155*55mm 44 07
PUBT12-040T432VMC-01 22/28/33/40W 140lm/W 3000-4000K 1220*155*55mm 44 07
PUBT15-047T508VMC-01 27/34/42/47W 140lm/W 3000-4000K 1510*155*55mm 44 07
