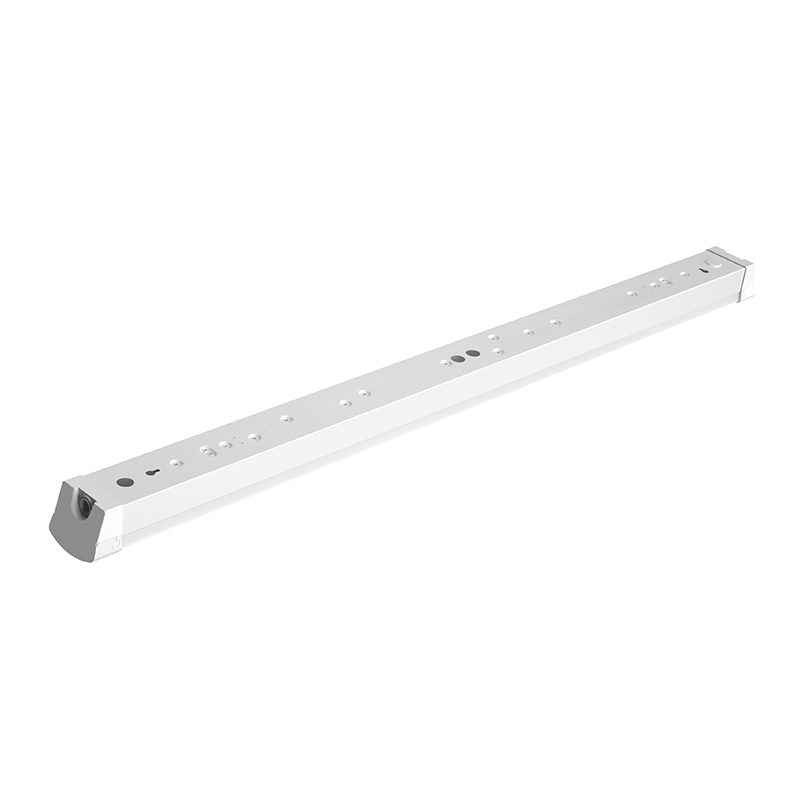

Universal Batten

> Flexibly designed for the end cap by using rotary shaft and magnet fixer, easy to open without tools.

> LED board adopts modular design that is easy to be replaced.

> Various sizes and patterns of installation will fulfil different applications.

> Wattage and CCT are changeable by DIP switches.

> IP44 design is suitable for more applications.

> All the function of on-off, DALI, sensor, emergency battery module are optional for flexible assembly.

Parameters

> Flexibly designed for the end cap by using rotary shaft and magnet fixer, easy to open without tools.

> LED board adopts modular design that is easy to be replaced.

> Various sizes and patterns of installation will fulfil different applications.

> Wattage and CCT are changeable by DIP switches.

> IP44 design is suitable for more applications.

> All the function of on-off, DALI, sensor, emergency battery module are optional for flexible assembly.

Wattage (max) 11-20W/22-40W/27-47W switchable

Lumens 6580lm max @47W

Luminaire Efficacy (Lm/W) 140lm/W

CRI 80

Colour temp 3000-4000K

Input AC220-240V

Beam angle(°) 110°

Length 695/1295/1595mm

Width 85mm

Height 70mm

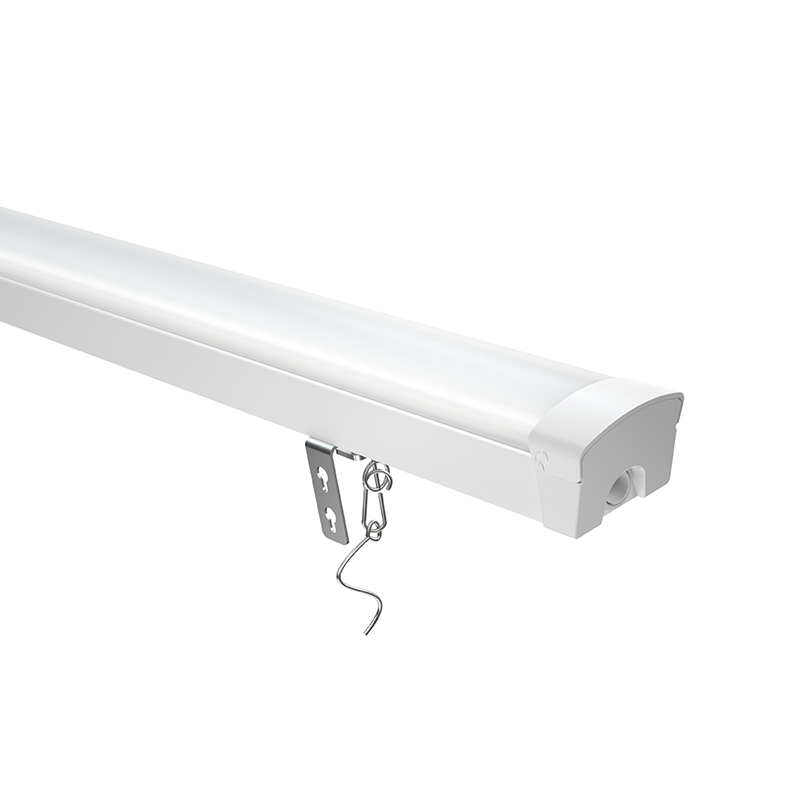

Installation Surface mounted/Suspension/Horizontal suspension/Wall mounted

IP IP44

Lifespan 100000H@L80B10

Warranty 5 years

Colors White

Power supply ON-OFF/0-10V/DALI

Article No. Wattage LM/W CCT Dimension IP IK

PUBT06-020T114VX-02 12/15/18/20W 120lm/W 3000-4000K 695*85*70mm 44 07

PUBT12-040T228VX-02 22/28/33/40W 140lm/W 3000-4000K 1295*85*70mm 44 07

PUBT15-047T288VX-02 27/34/42/47W 140lm/W 3000-4000K 1595*85*70mm 44 07
